Subgraphs

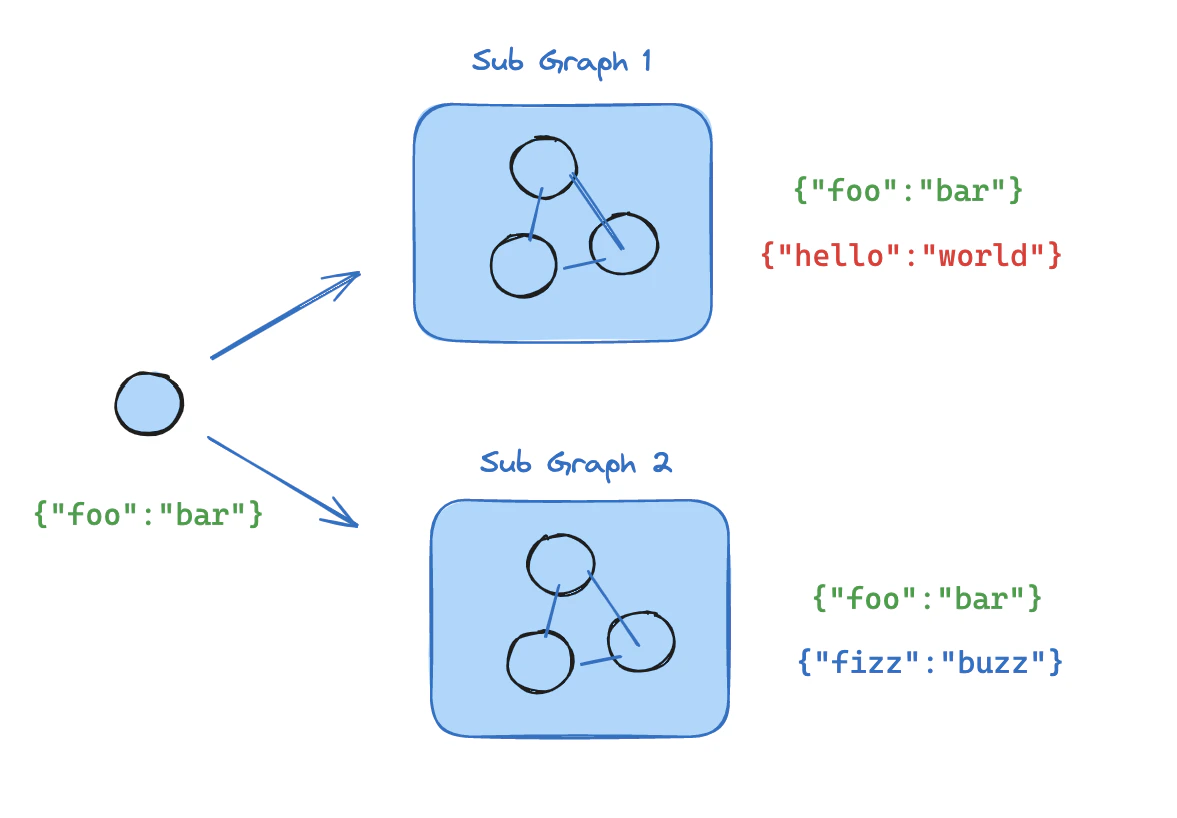

This guide explains the mechanics of using subgraphs. A subgraph is a graph that is used as a node in another graph.

Subgraphs are useful for:

• Building multi-agent systems
• Re-using a set of nodes in multiple graphs
• Distributing development: when you want different teams to work on different parts of the graph independently, you can define each part as a subgraph, and as long as the subgraph interface (the input and output schemas) is respected, the parent graph can be built without knowing any details of the subgraph

Setup

pip

pip install -U langgraph

Set up LangSmith for LangGraph development Sign up for LangSmith to quickly spot issues and improve the performance of your LangGraph projects. LangSmith lets you use trace data to debug, test, and monitor your LLM apps built with LangGraph — read more about how to get started here.

Define subgraph communication

When adding subgraphs, you need to define how the parent graph and the subgraph communicate:

Pattern	When to use	State schemas
Call a subgraph inside a node	Parent and subgraph have different state schemas (no shared keys), or you need to transform state between them	You write a wrapper function that maps parent state to subgraph input and subgraph output back to parent state
Add a subgraph as a node	Parent and subgraph share state keys — the subgraph reads from and writes to the same channels as the parent	You pass the compiled subgraph directly to add_node — no wrapper function needed

Call a subgraph inside a node

When the parent graph and subgraph have different state schemas (no shared keys), invoke the subgraph inside a node function. This is common when you want to keep a private message history for each agent in a multi-agent system.

The node function transforms the parent state to the subgraph state before invoking the subgraph, and transforms the results back to the parent state before returning.

from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START

class SubgraphState(TypedDict):
    bar: str

# Subgraph

def subgraph_node_1(state: SubgraphState):
    return {"bar": "hi! " + state["bar"]}

subgraph_builder = StateGraph(SubgraphState)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph = subgraph_builder.compile()

# Parent graph

class State(TypedDict):
    foo: str

def call_subgraph(state: State):
    # Transform the state to the subgraph state
    subgraph_output = subgraph.invoke({"bar": state["foo"]})
    # Transform response back to the parent state
    return {"foo": subgraph_output["bar"]}

builder = StateGraph(State)
builder.add_node("node_1", call_subgraph)
builder.add_edge(START, "node_1")
graph = builder.compile()

Full example: different state schemas

from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START

# Define subgraph
class SubgraphState(TypedDict):
    # note that none of these keys are shared with the parent graph state
    bar: str
    baz: str

def subgraph_node_1(state: SubgraphState):
    return {"baz": "baz"}

def subgraph_node_2(state: SubgraphState):
    return {"bar": state["bar"] + state["baz"]}

subgraph_builder = StateGraph(SubgraphState)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_node(subgraph_node_2)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph_builder.add_edge("subgraph_node_1", "subgraph_node_2")
subgraph = subgraph_builder.compile()

# Define parent graph
class ParentState(TypedDict):
    foo: str

def node_1(state: ParentState):
    return {"foo": "hi! " + state["foo"]}

def node_2(state: ParentState):
    # Transform the state to the subgraph state
    response = subgraph.invoke({"bar": state["foo"]})
    # Transform response back to the parent state
    return {"foo": response["bar"]}


builder = StateGraph(ParentState)
builder.add_node("node_1", node_1)
builder.add_node("node_2", node_2)
builder.add_edge(START, "node_1")
builder.add_edge("node_1", "node_2")
graph = builder.compile()

for chunk in graph.stream({"foo": "foo"}, subgraphs=True):
    print(chunk)

((), {'node_1': {'foo': 'hi! foo'}})
(('node_2:577b710b-64ae-31fb-9455-6a4d4cc2b0b9',), {'subgraph_node_1': {'baz': 'baz'}})
(('node_2:577b710b-64ae-31fb-9455-6a4d4cc2b0b9',), {'subgraph_node_2': {'bar': 'hi! foobaz'}})
((), {'node_2': {'foo': 'hi! foobaz'}})

Full example: different state schemas (two levels of subgraphs)

This is an example with two levels of subgraphs: parent -> child -> grandchild.

# Grandchild graph
from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START, END

class GrandChildState(TypedDict):
    my_grandchild_key: str

def grandchild_1(state: GrandChildState) -> GrandChildState:
    # NOTE: child or parent keys will not be accessible here
    return {"my_grandchild_key": state["my_grandchild_key"] + ", how are you"}


grandchild = StateGraph(GrandChildState)
grandchild.add_node("grandchild_1", grandchild_1)

grandchild.add_edge(START, "grandchild_1")
grandchild.add_edge("grandchild_1", END)

grandchild_graph = grandchild.compile()

# Child graph
class ChildState(TypedDict):
    my_child_key: str

def call_grandchild_graph(state: ChildState) -> ChildState:
    # NOTE: parent or grandchild keys won't be accessible here
    grandchild_graph_input = {"my_grandchild_key": state["my_child_key"]}
    grandchild_graph_output = grandchild_graph.invoke(grandchild_graph_input)
    return {"my_child_key": grandchild_graph_output["my_grandchild_key"] + " today?"}

child = StateGraph(ChildState)
# We're passing a function here instead of just compiled graph (`grandchild_graph`)
child.add_node("child_1", call_grandchild_graph)
child.add_edge(START, "child_1")
child.add_edge("child_1", END)
child_graph = child.compile()

# Parent graph
class ParentState(TypedDict):
    my_key: str

def parent_1(state: ParentState) -> ParentState:
    # NOTE: child or grandchild keys won't be accessible here
    return {"my_key": "hi " + state["my_key"]}

def parent_2(state: ParentState) -> ParentState:
    return {"my_key": state["my_key"] + " bye!"}

def call_child_graph(state: ParentState) -> ParentState:
    child_graph_input = {"my_child_key": state["my_key"]}
    child_graph_output = child_graph.invoke(child_graph_input)
    return {"my_key": child_graph_output["my_child_key"]}

parent = StateGraph(ParentState)
parent.add_node("parent_1", parent_1)
# We're passing a function here instead of just a compiled graph (`child_graph`)
parent.add_node("child", call_child_graph)
parent.add_node("parent_2", parent_2)

parent.add_edge(START, "parent_1")
parent.add_edge("parent_1", "child")
parent.add_edge("child", "parent_2")
parent.add_edge("parent_2", END)

parent_graph = parent.compile()

for chunk in parent_graph.stream({"my_key": "Bob"}, subgraphs=True):
    print(chunk)

((), {'parent_1': {'my_key': 'hi Bob'}})
(('child:2e26e9ce-602f-862c-aa66-1ea5a4655e3b', 'child_1:781bb3b1-3971-84ce-810b-acf819a03f9c'), {'grandchild_1': {'my_grandchild_key': 'hi Bob, how are you'}})
(('child:2e26e9ce-602f-862c-aa66-1ea5a4655e3b',), {'child_1': {'my_child_key': 'hi Bob, how are you today?'}})
((), {'child': {'my_key': 'hi Bob, how are you today?'}})
((), {'parent_2': {'my_key': 'hi Bob, how are you today? bye!'}})

Add a subgraph as a node

When the parent graph and subgraph share state keys, you can pass a compiled subgraph directly to add_node. No wrapper function is needed — the subgraph reads from and writes to the parent’s state channels automatically. For example, in multi-agent systems, the agents often communicate over a shared messages key.

If your subgraph shares state keys with the parent graph, you can follow these steps to add it to your graph:

1. Define the subgraph workflow (subgraph_builder in the example below) and compile it
2. Pass compiled subgraph to the add_node method when defining the parent graph workflow

from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START

class State(TypedDict):
    foo: str

# Subgraph

def subgraph_node_1(state: State):
    return {"foo": "hi! " + state["foo"]}

subgraph_builder = StateGraph(State)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph = subgraph_builder.compile()

# Parent graph

builder = StateGraph(State)
builder.add_node("node_1", subgraph)
builder.add_edge(START, "node_1")
graph = builder.compile()

Full example: shared state schemas

from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START

# Define subgraph
class SubgraphState(TypedDict):
    foo: str  # shared with parent graph state
    bar: str  # private to SubgraphState

def subgraph_node_1(state: SubgraphState):
    return {"bar": "bar"}

def subgraph_node_2(state: SubgraphState):
    # note that this node is using a state key ('bar') that is only available in the subgraph
    # and is sending update on the shared state key ('foo')
    return {"foo": state["foo"] + state["bar"]}

subgraph_builder = StateGraph(SubgraphState)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_node(subgraph_node_2)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph_builder.add_edge("subgraph_node_1", "subgraph_node_2")
subgraph = subgraph_builder.compile()

# Define parent graph
class ParentState(TypedDict):
    foo: str

def node_1(state: ParentState):
    return {"foo": "hi! " + state["foo"]}

builder = StateGraph(ParentState)
builder.add_node("node_1", node_1)
builder.add_node("node_2", subgraph)
builder.add_edge(START, "node_1")
builder.add_edge("node_1", "node_2")
graph = builder.compile()

for chunk in graph.stream({"foo": "foo"}):
    print(chunk)

{'node_1': {'foo': 'hi! foo'}}
{'node_2': {'foo': 'hi! foobar'}}

Subgraph persistence

By default, subgraphs start fresh on every invocation — they have no memory of previous calls. This is the right choice for most applications, including multi-agent systems where subagents are invoked as tools.

If a subagent needs to remember previous conversations (multi-turn history), you can enable stateful persistence so state accumulates across invocations on the same thread.

The parent graph must be compiled with a checkpointer for subgraph persistence features (interrupts, state inspection, stateful memory) to work. See persistence.

Stateless

Both checkpointer=False and checkpointer=None produce stateless behavior — each invocation starts fresh with no memory of previous calls. The difference is whether the subgraph supports interrupts within a single invocation.

Without interrupts

Compile with checkpointer=False to opt out of checkpointing entirely. No checkpoints are written for the subgraph. The subgraph cannot use interrupt() and its state is not inspectable via get_state. This is the lightest-weight option.

subgraph_builder = StateGraph(...)
subgraph = subgraph_builder.compile(checkpointer=False)

With interrupts

This is the recommended mode for most applications, including multi-agent systems where subagents are invoked as tools. It supports interrupts and parallel calls while keeping each invocation isolated.

The default behavior when you omit checkpointer or set it to None. The subgraph inherits the parent’s checkpointer and each invocation gets a unique checkpoint namespace. Within a single invocation, the subgraph can use interrupt() to pause and resume.

The following examples use two subagents (fruit expert, veggie expert) wrapped as tools for an outer agent:

from langchain.agents import create_agent
from langchain_core.tools import tool
from langgraph.checkpoint.memory import MemorySaver
from langgraph.types import Command, interrupt

@tool
def fruit_info(fruit_name: str) -> str:
    """Look up fruit info."""
    return f"Info about {fruit_name}"

@tool
def veggie_info(veggie_name: str) -> str:
    """Look up veggie info."""
    return f"Info about {veggie_name}"

# Subagents — no checkpointer setting (inherits parent)
fruit_agent = create_agent(
    model="gpt-4.1-mini",
    tools=[fruit_info],
    prompt="You are a fruit expert. Use the fruit_info tool. Respond in one sentence.",
)

veggie_agent = create_agent(
    model="gpt-4.1-mini",
    tools=[veggie_info],
    prompt="You are a veggie expert. Use the veggie_info tool. Respond in one sentence.",
)

# Wrap subagents as tools for the outer agent
@tool
def ask_fruit_expert(question: str) -> str:
    """Ask the fruit expert. Use for ALL fruit questions."""
    response = fruit_agent.invoke(
        {"messages": [{"role": "user", "content": question}]},
    )
    return response["messages"][-1].content

@tool
def ask_veggie_expert(question: str) -> str:
    """Ask the veggie expert. Use for ALL veggie questions."""
    response = veggie_agent.invoke(
        {"messages": [{"role": "user", "content": question}]},
    )
    return response["messages"][-1].content

# Outer agent with checkpointer
agent = create_agent(
    model="gpt-4.1-mini",
    tools=[ask_fruit_expert, ask_veggie_expert],
    prompt=(
        "You have two experts: ask_fruit_expert and ask_veggie_expert. "
        "ALWAYS delegate questions to the appropriate expert."
    ),
    checkpointer=MemorySaver(),
)

Interrupts

Each invocation can use interrupt() to pause and resume. Add interrupt() to a tool function to require user approval before proceeding:

@tool
def fruit_info(fruit_name: str) -> str:
    """Look up fruit info."""
    interrupt("continue?")
    return f"Info about {fruit_name}"

config = {"configurable": {"thread_id": "1"}}

# Invoke — the subagent's tool calls interrupt()
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about apples"}]},
    config=config,
)
# response contains __interrupt__

# Resume — approve the interrupt
response = agent.invoke(Command(resume=True), config=config)
# Subagent message count: 4

Multi-turn

Each invocation starts with a fresh subagent state. The subagent does not remember previous calls:

config = {"configurable": {"thread_id": "1"}}

# First call
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about apples"}]},
    config=config,
)
# Subagent message count: 4

# Second call — subagent starts fresh, no memory of apples
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Now tell me about bananas"}]},
    config=config,
)
# Subagent message count: 4 (still fresh!)

Multiple subgraph calls

Multiple calls to the same subgraph work without conflicts, since each invocation gets its own checkpoint namespace:

config = {"configurable": {"thread_id": "1"}}

# LLM calls ask_fruit_expert for both apples and bananas
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about apples and bananas"}]},
    config=config,
)
# Subagent message count: 4 (apples — fresh)
# Subagent message count: 4 (bananas — fresh)

Stateful

Compile with checkpointer=True to enable state that accumulates across invocations on the same thread. LangGraph strips task IDs from the checkpoint namespace (turning node:task_id|subnode:subtask_id into node|subnode), so the subgraph writes to the same namespace every time. The subgraph “remembers” previous calls — use this when a subagent needs multi-turn conversation history.

The following examples use a single fruit expert subagent compiled with checkpointer=True:

from langchain.agents import create_agent
from langchain_core.tools import tool
from langgraph.checkpoint.memory import MemorySaver
from langgraph.types import Command, interrupt

@tool
def fruit_info(fruit_name: str) -> str:
    """Look up fruit info."""
    return f"Info about {fruit_name}"

# Subagent with checkpointer=True for persistent state
fruit_agent = create_agent(
    model="gpt-4.1-mini",
    tools=[fruit_info],
    prompt="You are a fruit expert. Use the fruit_info tool. Respond in one sentence.",
    checkpointer=True,
)

# Wrap subagent as a tool for the outer agent
@tool
def ask_fruit_expert(question: str) -> str:
    """Ask the fruit expert. Use for ALL fruit questions."""
    response = fruit_agent.invoke(
        {"messages": [{"role": "user", "content": question}]},
    )
    return response["messages"][-1].content

# Outer agent with checkpointer
agent = create_agent(
    model="gpt-4.1-mini",
    tools=[ask_fruit_expert],
    prompt="You have a fruit expert. ALWAYS delegate fruit questions to ask_fruit_expert.",
    checkpointer=MemorySaver(),
)

Interrupts

Stateful subagents support interrupt() just like per-invocation. Add interrupt() to a tool function to require user approval:

@tool
def fruit_info(fruit_name: str) -> str:
    """Look up fruit info."""
    interrupt("continue?")
    return f"Info about {fruit_name}"

config = {"configurable": {"thread_id": "1"}}

# Invoke — the subagent's tool calls interrupt()
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about apples"}]},
    config=config,
)
# response contains __interrupt__

# Resume — approve the interrupt
response = agent.invoke(Command(resume=True), config=config)
# Subagent message count: 4

Multi-turn

State accumulates across invocations — the subagent remembers past conversations:

config = {"configurable": {"thread_id": "1"}}

# First call
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about apples"}]},
    config=config,
)
# Subagent message count: 4

# Second call — subagent REMEMBERS apples conversation
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Now tell me about bananas"}]},
    config=config,
)
# Subagent message count: 8 (accumulated!)

Multiple subgraph calls

Multiple calls to different stateful subgraphs from a single node require namespace isolation — wrap each agent in a StateGraph with a unique node name:

from langgraph.graph import MessagesState, StateGraph

def create_sub_agent(model, *, name, **kwargs):
    """Wrap an agent with a unique node name for namespace isolation."""
    agent = create_agent(model=model, name=name, **kwargs)
    return (
        StateGraph(MessagesState)
        .add_node(name, agent)
        .add_edge("__start__", name)
        .compile()
    )

fruit_agent = create_sub_agent(
    "gpt-4.1-mini", name="fruit_agent",
    tools=[fruit_info], prompt="...", checkpointer=True,
)
veggie_agent = create_sub_agent(
    "gpt-4.1-mini", name="veggie_agent",
    tools=[veggie_info], prompt="...", checkpointer=True,
)

Each agent accumulates state independently:

config = {"configurable": {"thread_id": "1"}}

# First call — LLM calls both fruit and veggie experts
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Tell me about cherries and broccoli"}]},
    config=config,
)
# Fruit subagent message count: 4
# Veggie subagent message count: 4

# Second call — both agents accumulate independently
response = agent.invoke(
    {"messages": [{"role": "user", "content": "Now tell me about oranges and carrots"}]},
    config=config,
)
# Fruit subagent message count: 8 (remembers cherries!)
# Veggie subagent message count: 8 (remembers broccoli!)

Multiple calls to the same subgraph with stateful persistence cause namespace conflicts — both calls read from and write to the same checkpoint, corrupting state. Use stateless with interrupts persistence instead when you need multiple calls to the same subgraph.

Namespace isolation for parallel stateful subgraphs

When multiple subgraphs are called inside a node with checkpointer=True, LangGraph assigns each invocation a position-based namespace suffix. The first invocation gets the base namespace (e.g., calling_node), the second gets calling_node|1, and so on. State persists per call position — if you reorder calls, each subgraph may load the wrong state.

Subgraphs added as nodes do not have this limitation because each node has a unique name that becomes part of the namespace.

Subgraph pattern	Namespace with checkpointer=True	Isolation
Added as a node	node_name|internal_node	Name-based (stable)
Called inside a node	calling_node, calling_node|1, …	Position-based (order-dependent)

For stable, name-based namespaces, wrap each subgraph in its own StateGraph with a unique node name. Each wrapper must be a different compiled subgraph instance — you cannot invoke the same instance twice in a single node.

from langchain.agents import create_agent
from langgraph.graph import START, StateGraph, MessagesState

def create_sub_agent(model, *, name, **kwargs):
    """Wrap an agent with a unique node name for namespace isolation."""
    agent = create_agent(model=model, name=name, **kwargs)
    return (
        StateGraph(MessagesState)
        .add_node(name, agent)
        .add_edge("__start__", name)
        .compile()
    )

fruit_agent = create_sub_agent("gpt-4.1-mini", name="fruit_agent", tools=[...], checkpointer=True)
veggie_agent = create_sub_agent("gpt-4.1-mini", name="veggie_agent", tools=[...], checkpointer=True)

Checkpointer reference

Control subgraph persistence with the checkpointer parameter on .compile():

subgraph = builder.compile(checkpointer=False)  # or True / None

Feature	Without interrupts	With interrupts (default)	Stateful
checkpointer=	False	None	True
Interrupts (HITL)	❌	✅	✅
Multi-turn memory	❌	❌	✅
Multiple calls (different subgraphs)	✅	✅	⚠️
Multiple calls (same subgraph)	✅	✅	❌
State inspection	❌	⚠️	✅

• Interrupts (HITL): The subgraph can use interrupt() to pause execution and wait for user input, then resume where it left off.
• Multi-turn memory: The subgraph retains its state across multiple invocations within the same thread. Each call picks up where the last one left off rather than starting fresh.
• Multiple calls (different subgraphs): Multiple different subgraph instances can be invoked within a single node without checkpoint namespace conflicts.
• Multiple calls (same subgraph): The same subgraph instance can be invoked multiple times within a single node. With stateful persistence, these calls write to the same checkpoint namespace and conflict — use per-invocation persistence instead.
• State inspection: The subgraph’s state is available via get_state(config, subgraphs=True) for debugging and monitoring.

View subgraph state

When you enable persistence, you can inspect the subgraph state using the subgraphs option. With checkpointer=False, no subgraph checkpoints are saved, so subgraph state is not available.

Viewing subgraph state requires that LangGraph can statically discover the subgraph — i.e., it is added as a node or called inside a node. It does not work when a subgraph is called inside a tool function or other indirection (e.g., the subagents pattern). Interrupts still propagate to the top-level graph regardless of nesting.

Stateless

Returns subgraph state for the current invocation only. Each invocation starts fresh.

from langgraph.graph import START, StateGraph
from langgraph.checkpoint.memory import MemorySaver
from langgraph.types import interrupt, Command
from typing_extensions import TypedDict

class State(TypedDict):
    foo: str

# Subgraph
def subgraph_node_1(state: State):
    value = interrupt("Provide value:")
    return {"foo": state["foo"] + value}

subgraph_builder = StateGraph(State)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph = subgraph_builder.compile()  # inherits parent checkpointer

# Parent graph
builder = StateGraph(State)
builder.add_node("node_1", subgraph)
builder.add_edge(START, "node_1")

checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)

config = {"configurable": {"thread_id": "1"}}

graph.invoke({"foo": ""}, config)

# View subgraph state for the current invocation
subgraph_state = graph.get_state(config, subgraphs=True).tasks[0].state

# Resume the subgraph
graph.invoke(Command(resume="bar"), config)

Stateful

Returns accumulated subgraph state across all invocations on this thread.

from langgraph.graph import START, StateGraph, MessagesState
from langgraph.checkpoint.memory import MemorySaver

# Subgraph with its own persistent state
subgraph_builder = StateGraph(MessagesState)
# ... add nodes and edges
subgraph = subgraph_builder.compile(checkpointer=True)

# Parent graph
builder = StateGraph(MessagesState)
builder.add_node("agent", subgraph)
builder.add_edge(START, "agent")

checkpointer = MemorySaver()
graph = builder.compile(checkpointer=checkpointer)

config = {"configurable": {"thread_id": "1"}}

graph.invoke({"messages": [{"role": "user", "content": "hi"}]}, config)
graph.invoke({"messages": [{"role": "user", "content": "what did I say?"}]}, config)

# View accumulated subgraph state (includes messages from both invocations)
subgraph_state = graph.get_state(config, subgraphs=True).tasks[0].state

Stream subgraph outputs

To include outputs from subgraphs in the streamed outputs, you can set the subgraphs option in the stream method of the parent graph. This will stream outputs from both the parent graph and any subgraphs.

for chunk in graph.stream(
    {"foo": "foo"},
    subgraphs=True,
    stream_mode="updates",
):
    print(chunk)

Stream from subgraphs

from typing_extensions import TypedDict
from langgraph.graph.state import StateGraph, START

# Define subgraph
class SubgraphState(TypedDict):
    foo: str
    bar: str

def subgraph_node_1(state: SubgraphState):
    return {"bar": "bar"}

def subgraph_node_2(state: SubgraphState):
    # note that this node is using a state key ('bar') that is only available in the subgraph
    # and is sending update on the shared state key ('foo')
    return {"foo": state["foo"] + state["bar"]}

subgraph_builder = StateGraph(SubgraphState)
subgraph_builder.add_node(subgraph_node_1)
subgraph_builder.add_node(subgraph_node_2)
subgraph_builder.add_edge(START, "subgraph_node_1")
subgraph_builder.add_edge("subgraph_node_1", "subgraph_node_2")
subgraph = subgraph_builder.compile()

# Define parent graph
class ParentState(TypedDict):
    foo: str

def node_1(state: ParentState):
    return {"foo": "hi! " + state["foo"]}

builder = StateGraph(ParentState)
builder.add_node("node_1", node_1)
builder.add_node("node_2", subgraph)
builder.add_edge(START, "node_1")
builder.add_edge("node_1", "node_2")
graph = builder.compile()

for chunk in graph.stream(
    {"foo": "foo"},
    stream_mode="updates",
    subgraphs=True,
):
    print(chunk)

((), {'node_1': {'foo': 'hi! foo'}})
(('node_2:e58e5673-a661-ebb0-70d4-e298a7fc28b7',), {'subgraph_node_1': {'bar': 'bar'}})
(('node_2:e58e5673-a661-ebb0-70d4-e298a7fc28b7',), {'subgraph_node_2': {'foo': 'hi! foobar'}})
((), {'node_2': {'foo': 'hi! foobar'}})

---

Edit this page on GitHub or file an issue.

Connect these docs to Claude, VSCode, and more via MCP for real-time answers.
